The PrimarySpatialRadialSearch task is used to add and edit arguments for the PrimarySpatialRadialSearch command used in a logic template. Performing a PrimarySpatialRadialSearch task consists of the following steps:

Step 1

The first step is to initiate the task by either selecting the Spatial->Primary Radial task in the SEARCHING task bar along the left side of the Logic Template editor or by double-clicking on the PrimarySpatialRadialSearch command name in the logic template if a PrimarySpatialRadialSearch already exists. If the Spatial->Primary Radial task is not enabled, be sure there is at least one primary spatial index defined in the related load definition file for this logic template.

The PrimarySpatialRadialSearch dialog box will appear:

Step 2

The second step is to select the Index for the command:

Use the Index drop-down list to select the primary spatial index to be searched.

Step 3

The third step is to specify the Center Point for the command:

Use the Center Point edit box to specify the HTML variable containing the coordinates of the center of the circle.

Step 4

The fourth step is to specify the Radius for the command:

Use the Radius edit box to specify the HTML variable containing the radius of the circle.

Step 5

The fifth step is to specify the Pass for the command:

Use the Pass edit box to specify the pass during which the search is to be executed.

Step 6

The sixth step is to click the OK button to insert the command into the logic template:

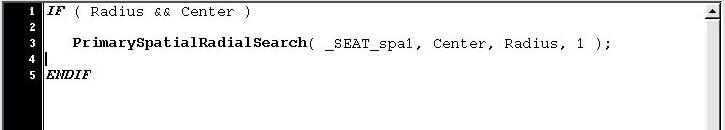

The command is inserted into the logic template where the cursor is located. If the task was initiated by double-clicking on the command name, then the arguments that are changed will be overwritten.
