The NumericFilter task is used to add and edit arguments for the NumericFilter command used in a logic template. Performing a NumericFilter task consists of the following steps:

Step 1

The first step is to initiate the task by either selecting the Numeric->Comparison task in the FILTERING task bar along the left side of the Logic Template editor or by double-clicking on the NumericFilter command name in the logic template if a NumericFilter already exists. If the Numeric->Comparison task is not enabled, be sure there is at least one numeric data field defined in the related load definition file for this logic template.

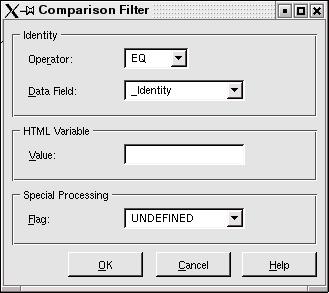

The NumericFilter dialog box will appear:

Step 2

The second step is to specify the Operator for the command:

Use the Operator drop-down list to specify the operator that is used to perform the comparison.

Step 3

The third step is to select the Data Field for the command:

Use the Data Field drop-down list to select the name of the data field to be tested.

Step 4

The fourth step is to specify the Value for the command:

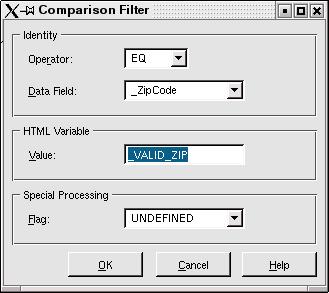

Use the Value edit box to specify the name of the HTML variable containing the value to test against.

Step 5

The fifth step is to specify the Flag for the command:

Use the Flag to indicate how records with a value of zero are handled.

Step 6

The sixfth step is to click the OK button to insert the command into the logic template:

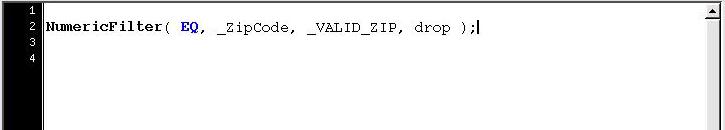

The command is inserted into the logic template where the cursor is located. If the task was initiated by double-clicking on the command name, then the arguments that are changed will be overwritten.
