Edit Document Scanning Section

Editing a document scanning section in a package in the Load Definition File editor consists of the following steps:

Step 1

The first step is to select the Edit Existing Package task in the PACKAGES task bar along the left side of the load definition file editor to activate the PACKAGES page if it isn't already activated.

Step 2

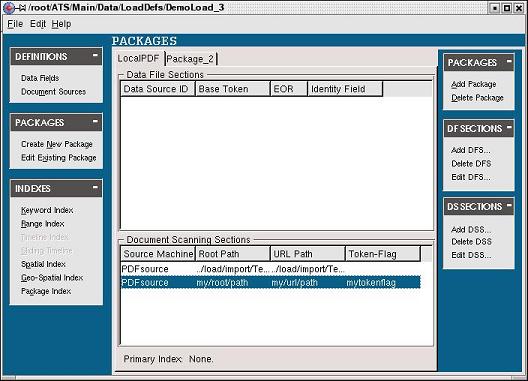

The second step is to active the package that contains the document scanning section that is to be edited and either double-click on the document scanning section or select that document scanning section from the Document Scanning Sections list on the PACKAGES page:

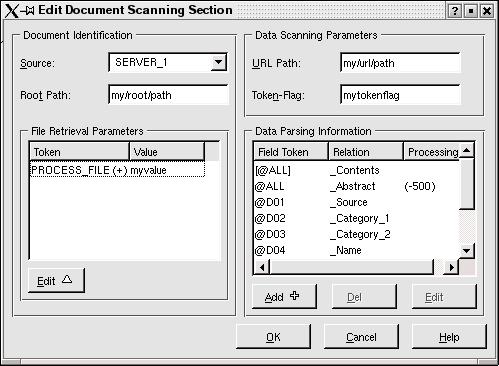

The Edit Document Scanning Section dialog box will appear:

The Edit Document Scanning Section dialog box is composed of the following properties:

Property

Description

Document Identification

Identifies the location of where the document being scanned exists.

Data Scanning Parameters

Identifies the URL Path and token-flag if one is defined.

Data Parsing Information

Entries used to identify individual data fields within the input data.

Step 3

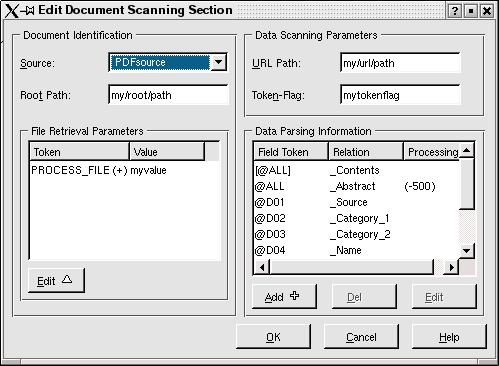

The third step is to edit the information that needs to be changed. In this case the machine source has been changed:

After the information has been edited, click the OK button to apply the changes.

The document scanning section has been edited.

To learn more about adding, deleting and editing the data parsing information see the following topics of this documentation:

Data Parsing Information

Add Data Parsing Information.

Delete Data Parsing Information.

Edit Data Parsing Information.
